Focused Ion Beam (FIB)/ Focused Ion Beam with Scanning Electron Microscope (FIB-SEM)/ Etching/ Deposition/ Tomography

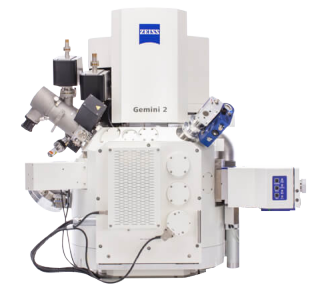

Equipment: ZEISS Gemini2

Working Principle

Depending on the type of primary ion beam and environmental gas type, sample can be cross-section cut or local cut, or locally deposited by metal. FIB is combined with SEM for imaging.

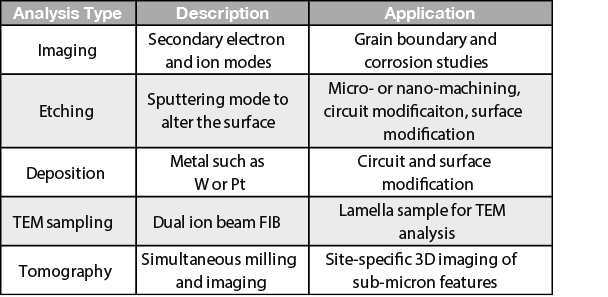

Technical Information

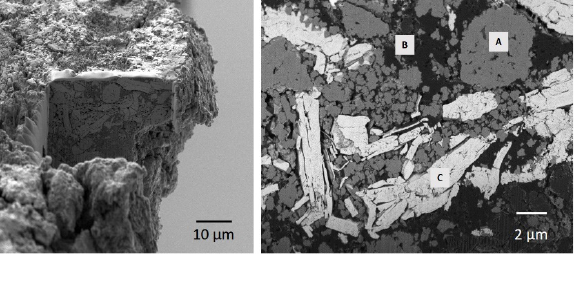

Cross-section of Lithium Ion Battery
